Klyde

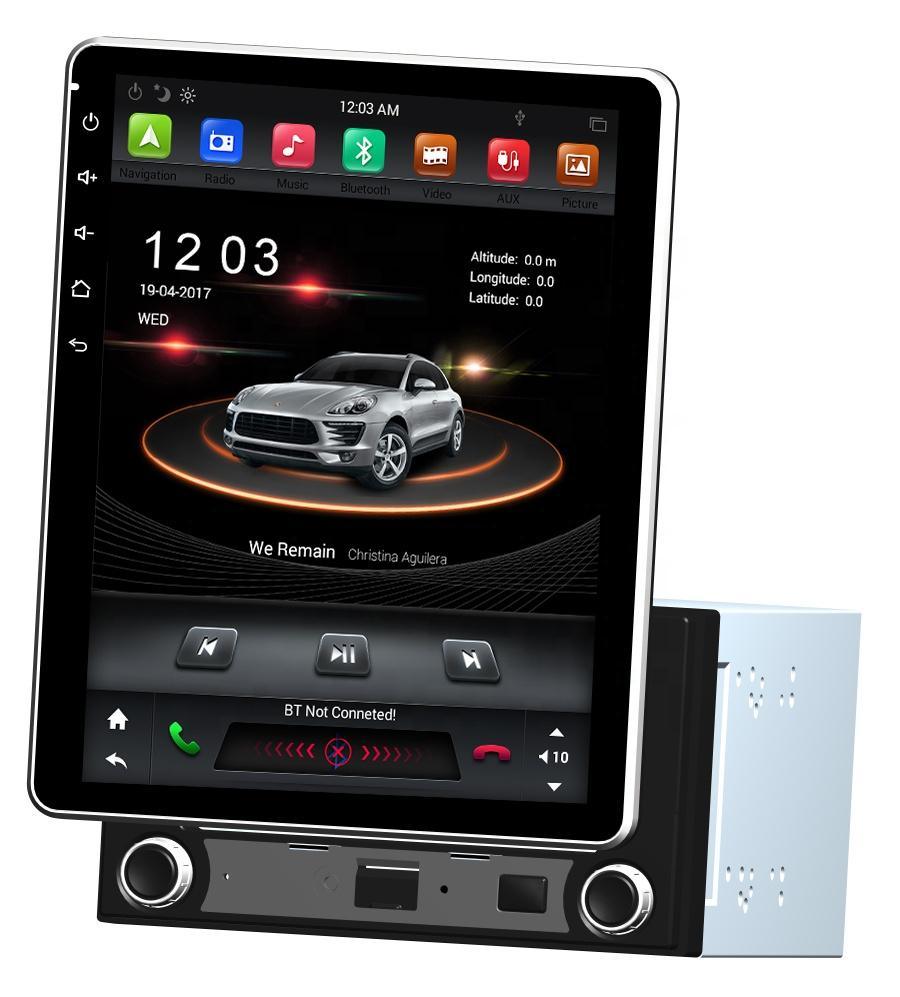

9.7" Universal Vertical Screen Android 9.0 Navigation Radio

9.7" Universal Vertical Screen Android 9.0 Navigation Radio

Regular price $614.99 USD
Regular price $763.33 USD Sale price $614.99 USD
Sale Sold out

9.7" Universal Vertical Screen Six-Core Android Navigation Radio Car Stereo Head Unit Audio Player in-dash Receiver

Compatibility | Features | Specifications | Demo Video | Gallery | FAQ | Reviews

Compatibility:

  • This Android Navigation Radio Can Be Installed in Vehicles with 12 volts power supply.
  • Touchscreen control A/C works for some models.
  • Please contact us if you have questions.

Main Features:

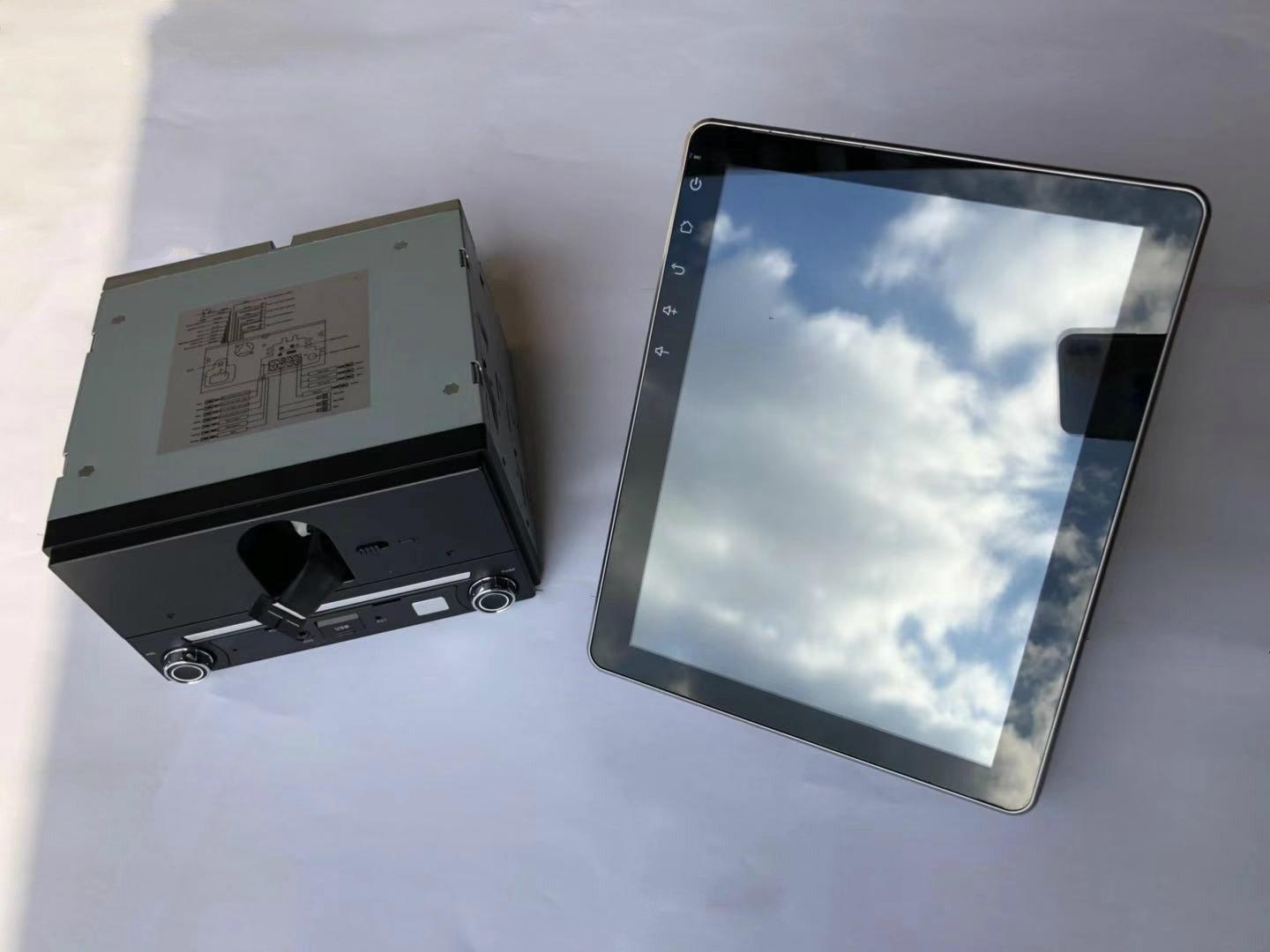

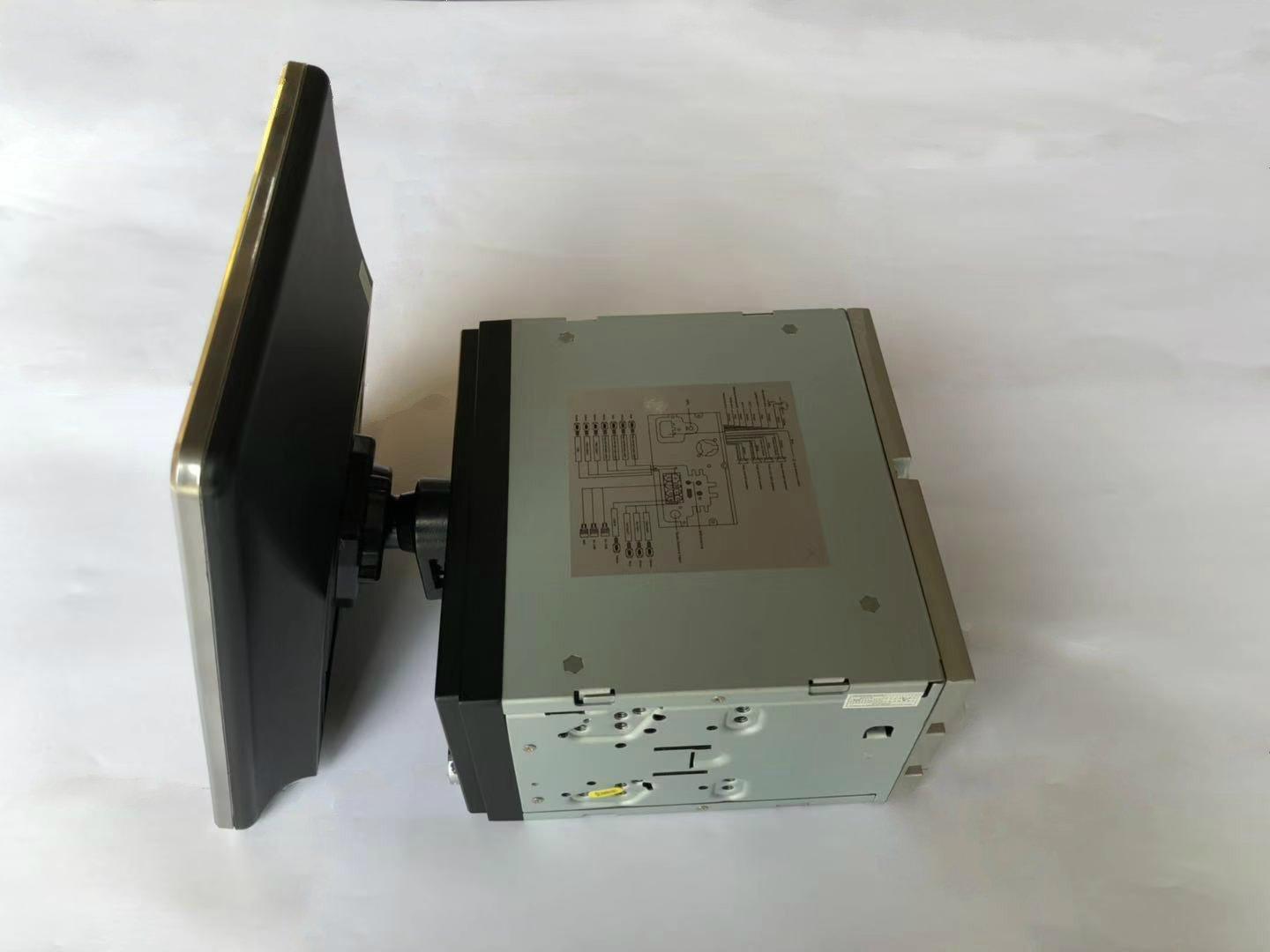

  • Rotatable(limited angle), and detachable screen.
  • Optional Android 9.0. Better security and app compatibility. Boots up in seconds unless it's cold boot.
  • 4 g ram 32 g rom.
  • Supports split-screen mode display two functions at the same time.
  • Supports full screen display of navigation map.

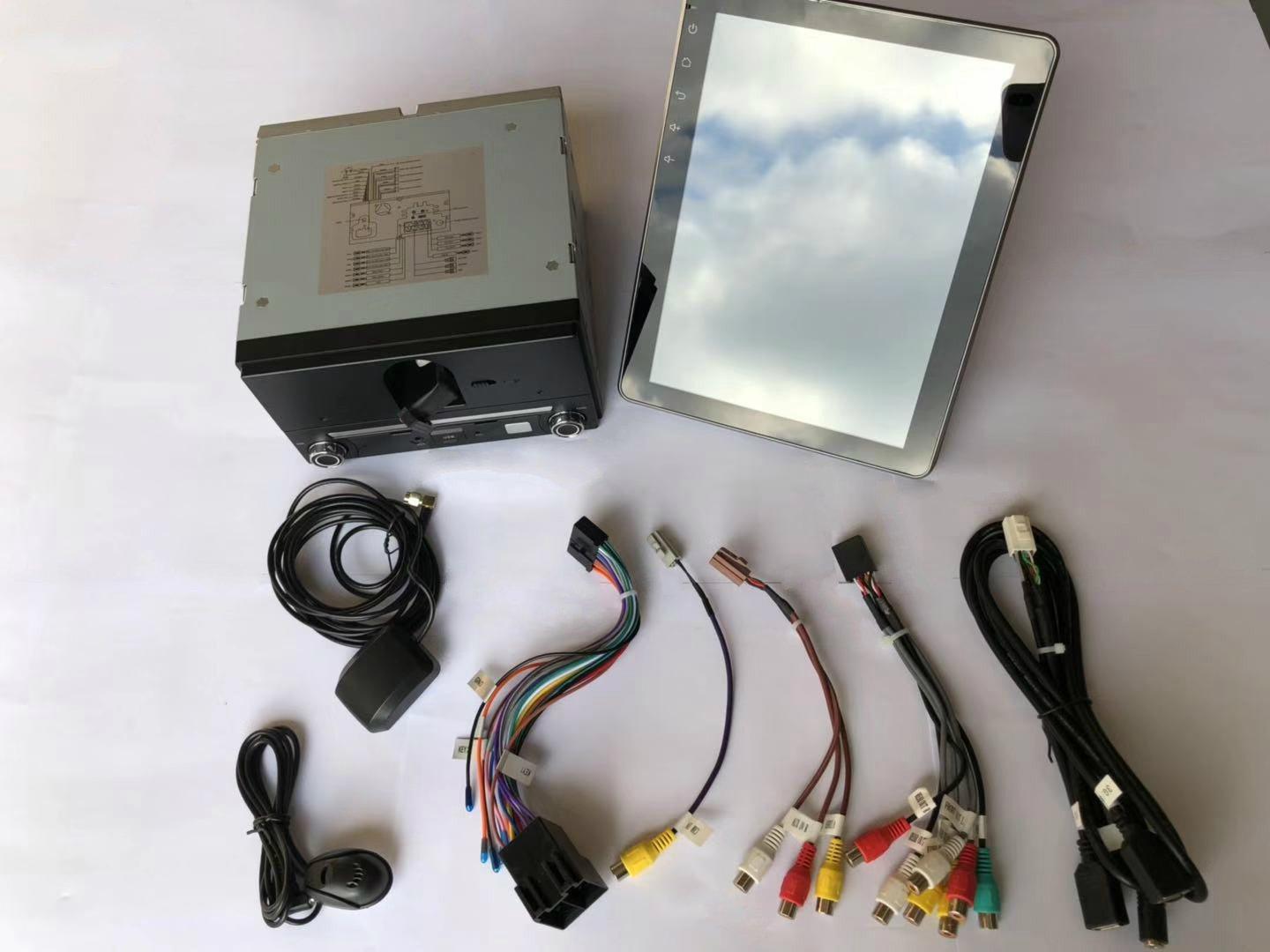

  • Plug and Play, no wiring required unless otherwise noted.

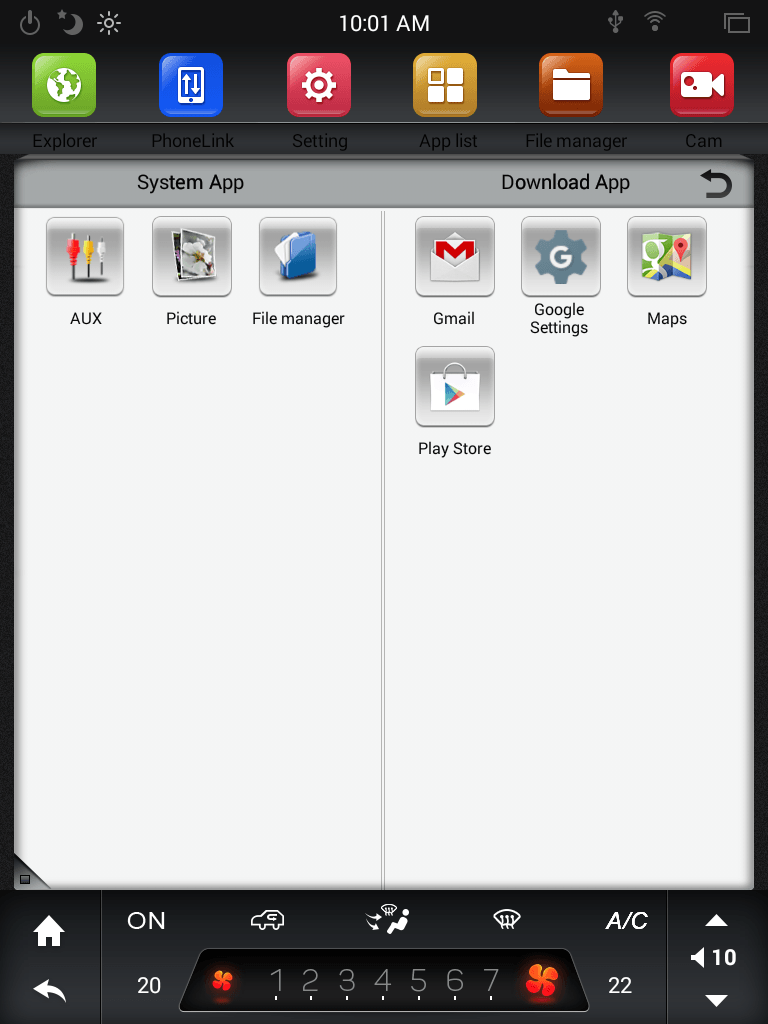

  • Installation of Android apps in Play Store and from “Unknown sources”.
  • GPS navigation with Android apps of your choice.
  • WiFi Internet connection. Bluetooth music and hands-free calling. MirrorLink with smartphones. Touch control of auto A/C. Display car info like RPM, speed. Optional TV, DVD, DVR modules, etc.
  • Retains factory backup cam, USB, steering wheel control, etc.

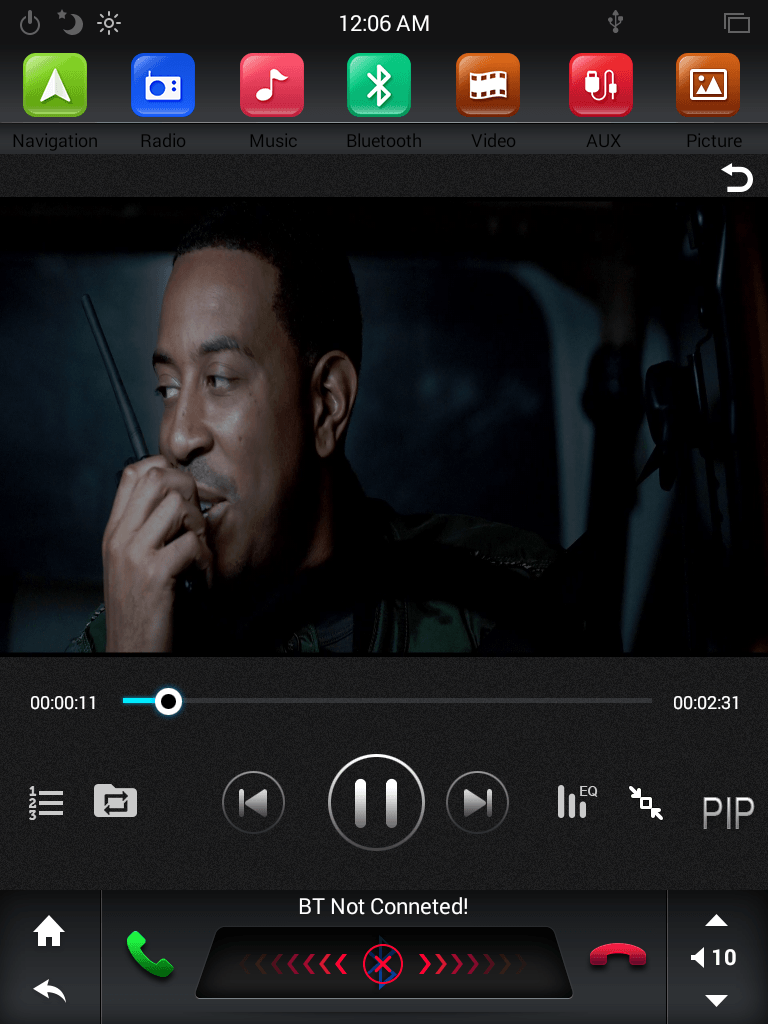

  • Support most audio and video format. Support Picture in Picture(PIP) playback of movies.
  • EQ balanced audio processing technology and 5.1 DSP Audio.
  • Support RCA rearview camera and other RCA Video input.

Optional Accessories:

  • Add $10 for an aftermarket backup camera.
  • Compatible DVB-T, DVD, DVR comes at different prices and designs.
  • Please contact us for more information.



Specifications:

System and Hardware Parameters
OS Android 9.0 System TFT drive IC RK PX3
CPU R8C2A2B Loader
RAM SAMSUNG DDR3 4GB Pick up
Flansh 32GB Motor drive
Radio TEF6851 Amplifer IC TDA 7388
GPS ZS811+ZS1011 DVD decoder IC

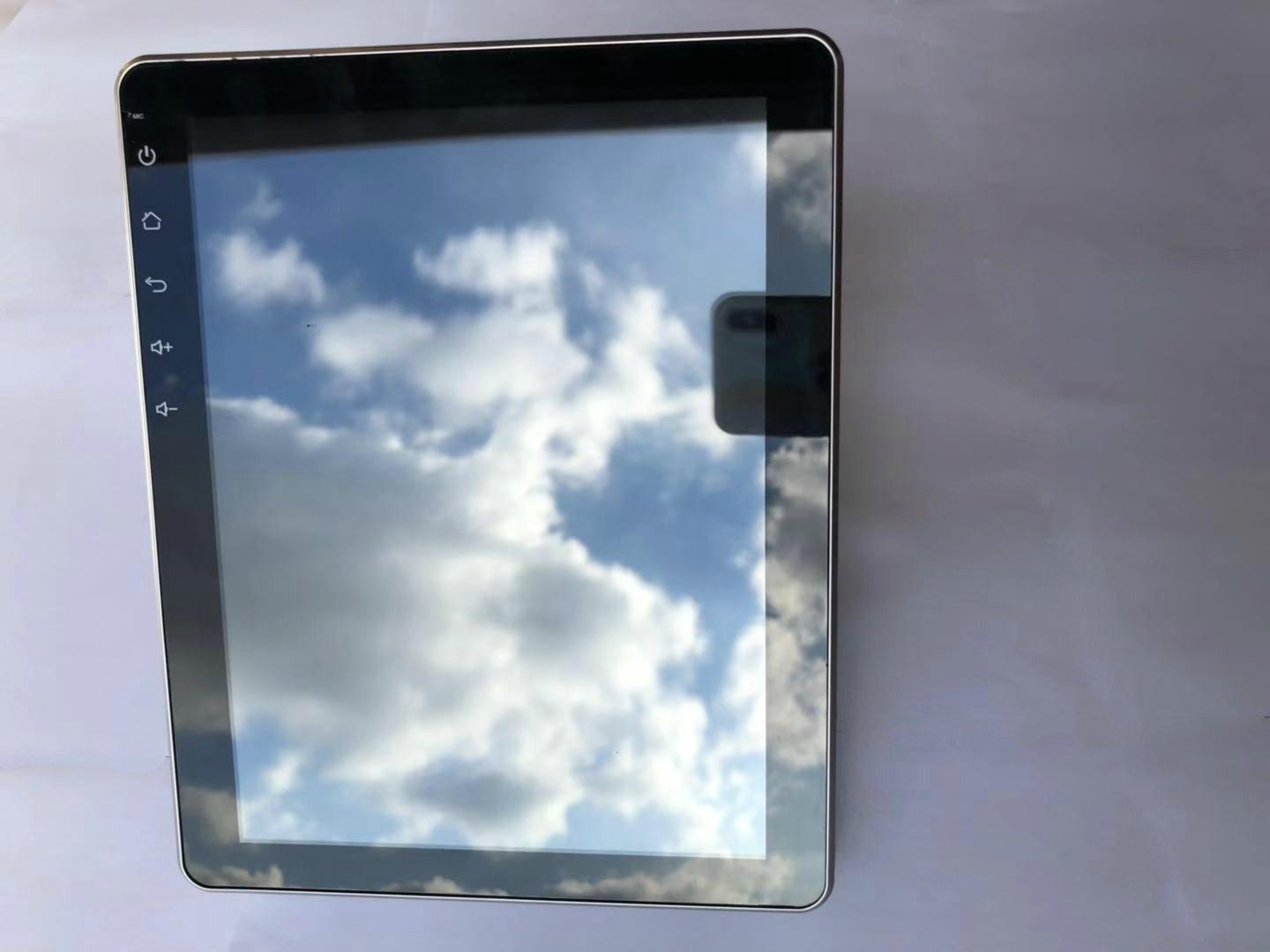

Screen Capacitive and multi-touch screen Screen JLY Screen
Video Decoder 1080P HW Power supply 4*45W
WIFI RTL8189ETV
Bluetooth
RDA5876
DVR USB Camera (PC Standard)
Multi-media Parameters Radio Parameters
Music Format MP3、WMA、AAC、APE、RA,LFAC etc Frenqency Range FM:76.0MHz-108.0MHz
Video Format MPEG-1/2/4、H264、H263、WMV、AVI、RMVB、3GP、MPG、MOV、MKV、FLV.Stream… Frenqency Range AM: 522KHz-1620KHz
Picture Format JPG/BMP/JEPG/GIF/PNG/GIF Country China、Europe、Eastern、Europe、Russia、USA1、USA2、Japan
DVD Parameters Amplifer Parameters
Vidio output range 1.0V-1.2V(75Ω) Test Voltage 13.8V
Compatible Disc Max output power
GPS Parameters WIFI Parameters
Operation system Android4.4.4/ 7.1 System Power supply Vcc_5V
Support Map Android 6.0.1 Map Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN
Main Frenqency 1.5GHz Interface type USB2.0
Map Solution 1024*800 Frequency 2.4-2.484GHz?
Modulation OFDM/DBPSK/DQPSK/CCK
RF Power 15dBM

Demo Video:
